It was right around this point that i decided i would do the conversion.
|
|
|
I didnt have to take off much because i was rebuilding.
|
|
|

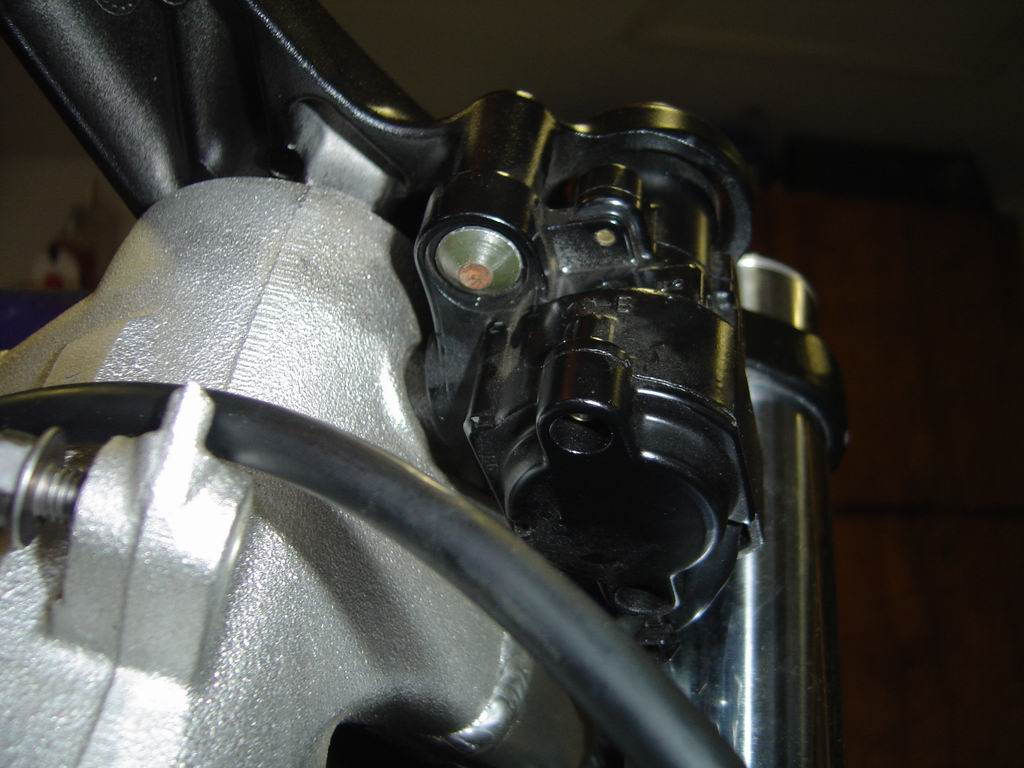

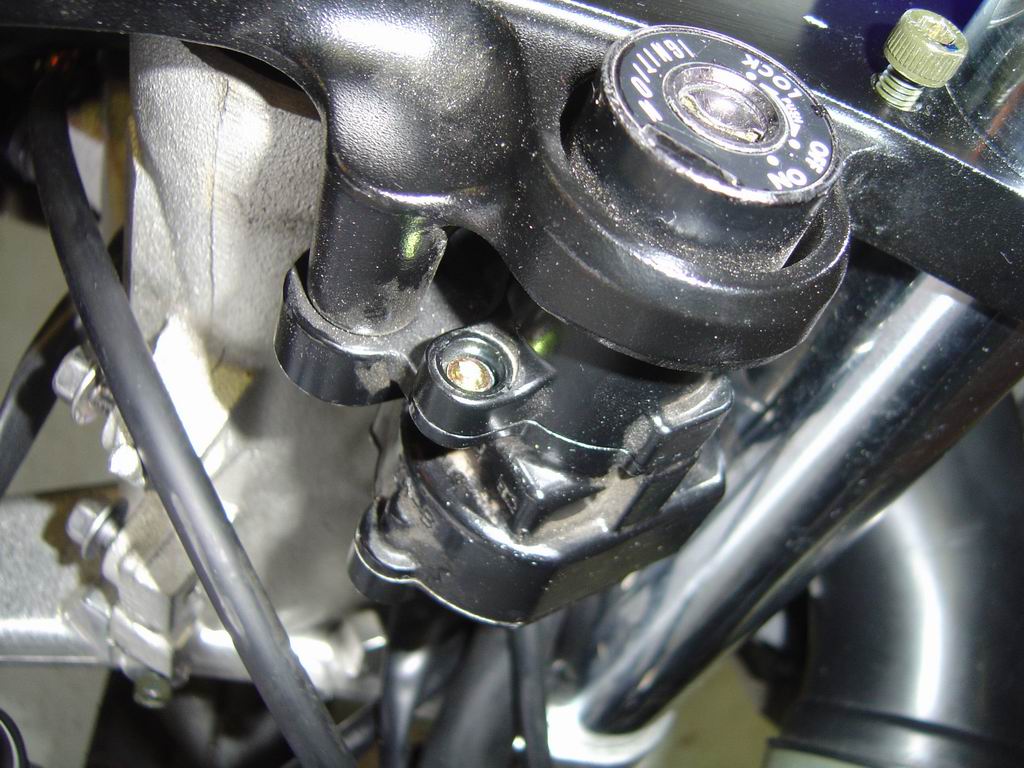

Just looking into the possability of swapping ignitions.
|
|
|
Decided against swapping the ignitions.
|
|
|
|

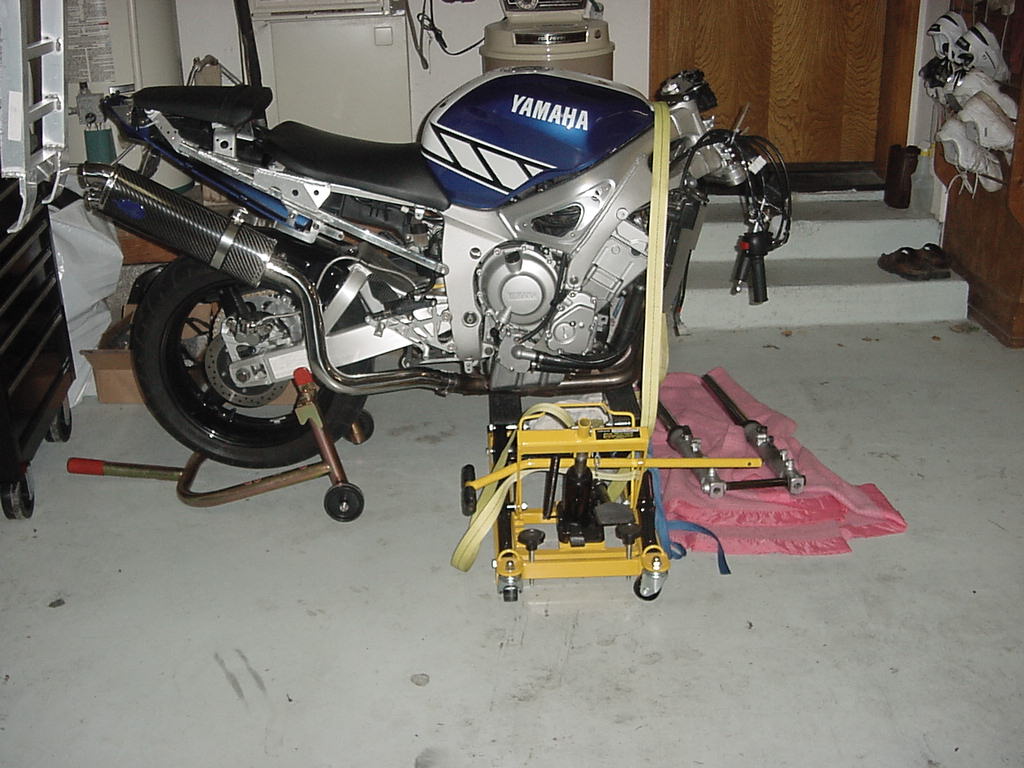

Borrowed the jack stand again and went to town.
|
|
|
I kept all the bushings and whatnot in order with zip ties.
|
|
|
And i thought it looked wierd before i started the conversion.
|
|
|

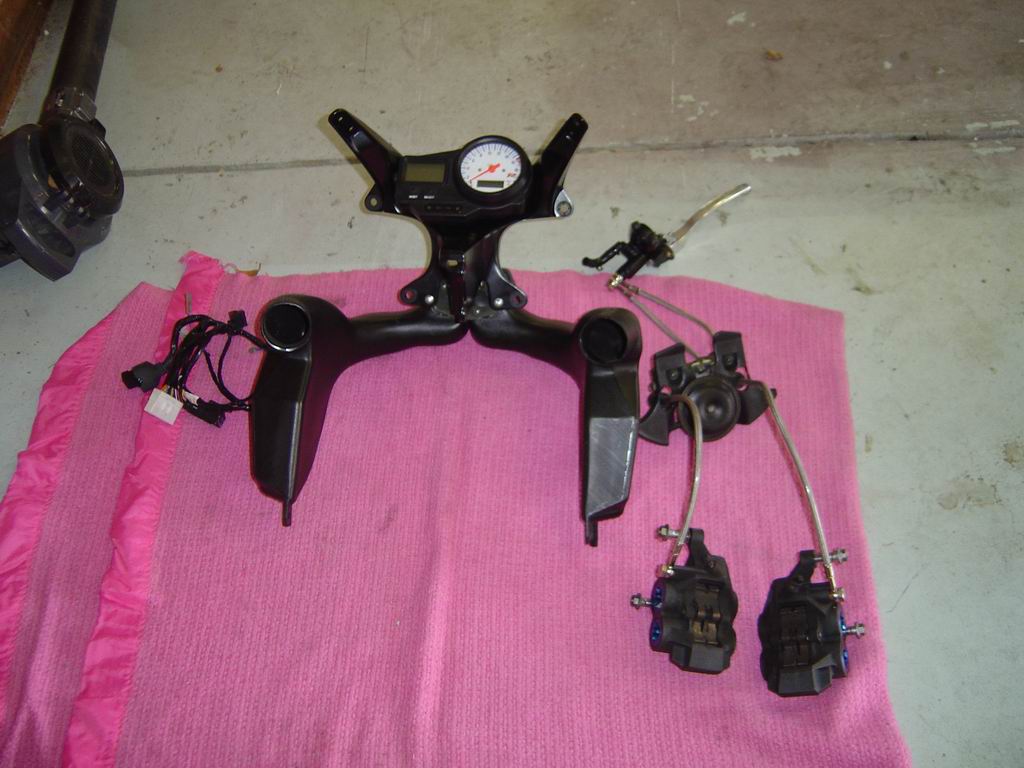

I zip tied all the control cables and a few electrical harnesses to keep them out of the way.
|
|
|
|
The first of many boxes.
|
|
|
I spent about a hour just shining these babies up with coleman fuel.
|
|
|
These are off a 2003 R1. I picked them up for $200.00 plus shipping.
|
|
|

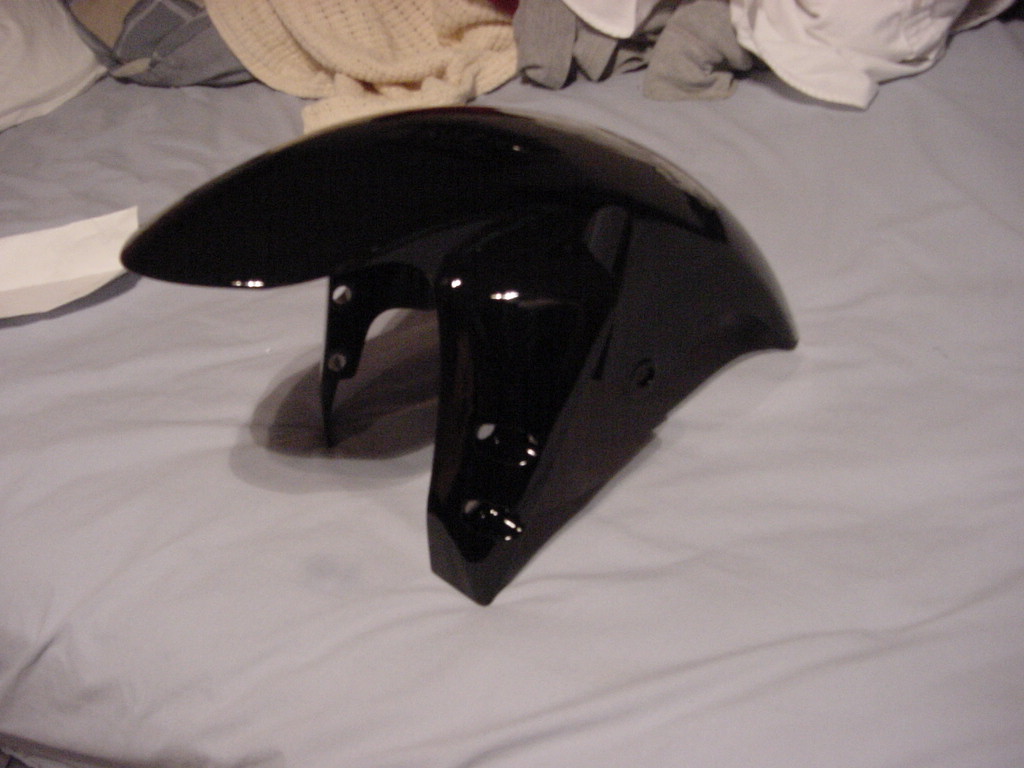

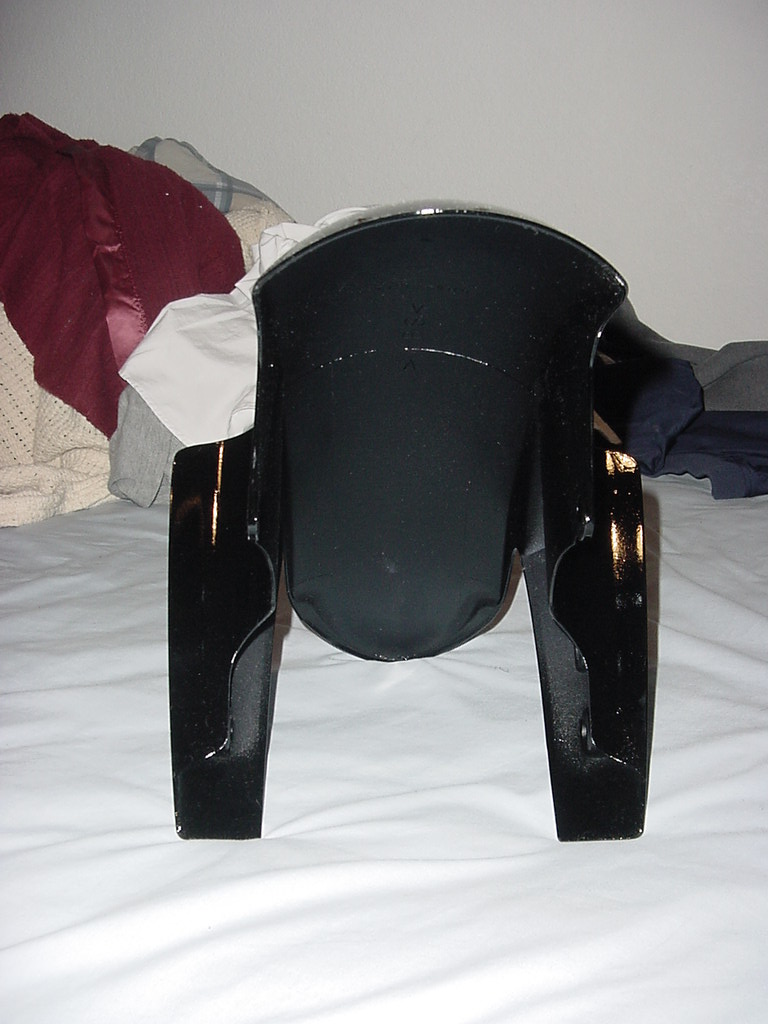

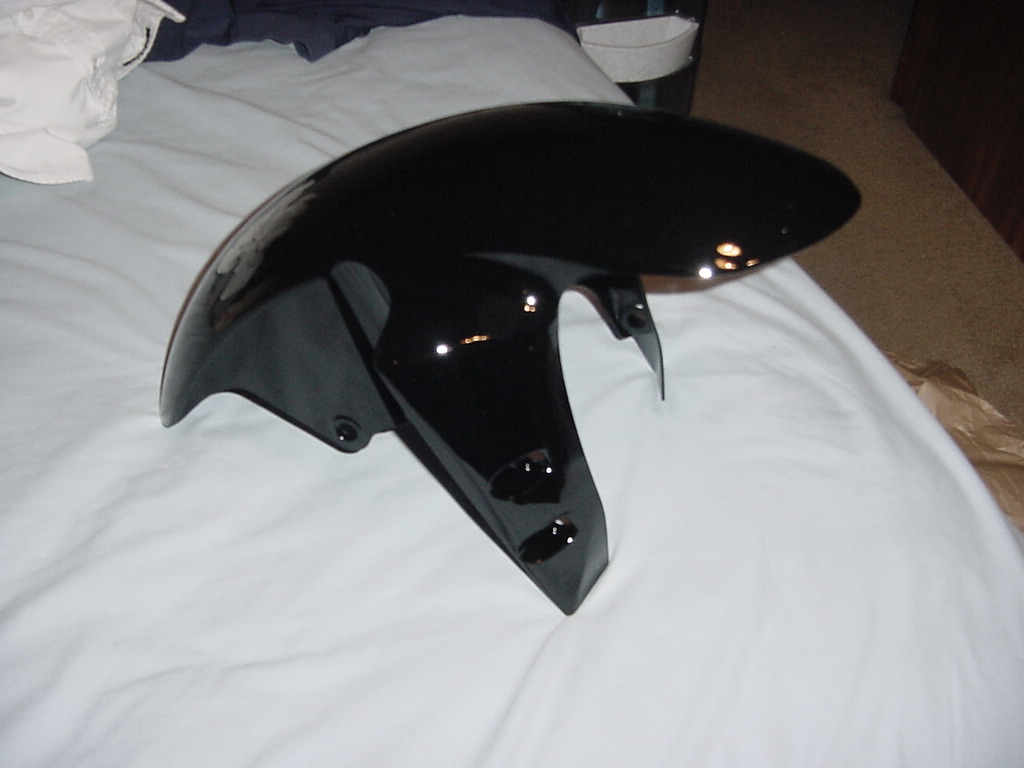

I was able to find a brand new black fender on ebay.
|
|
|
|
Aside from the main fender part, i needed to order the mounting hardware and hose clamps.
|
|
|
I ordered the hardware and hose clamps from partsfish.com.
|
|
|

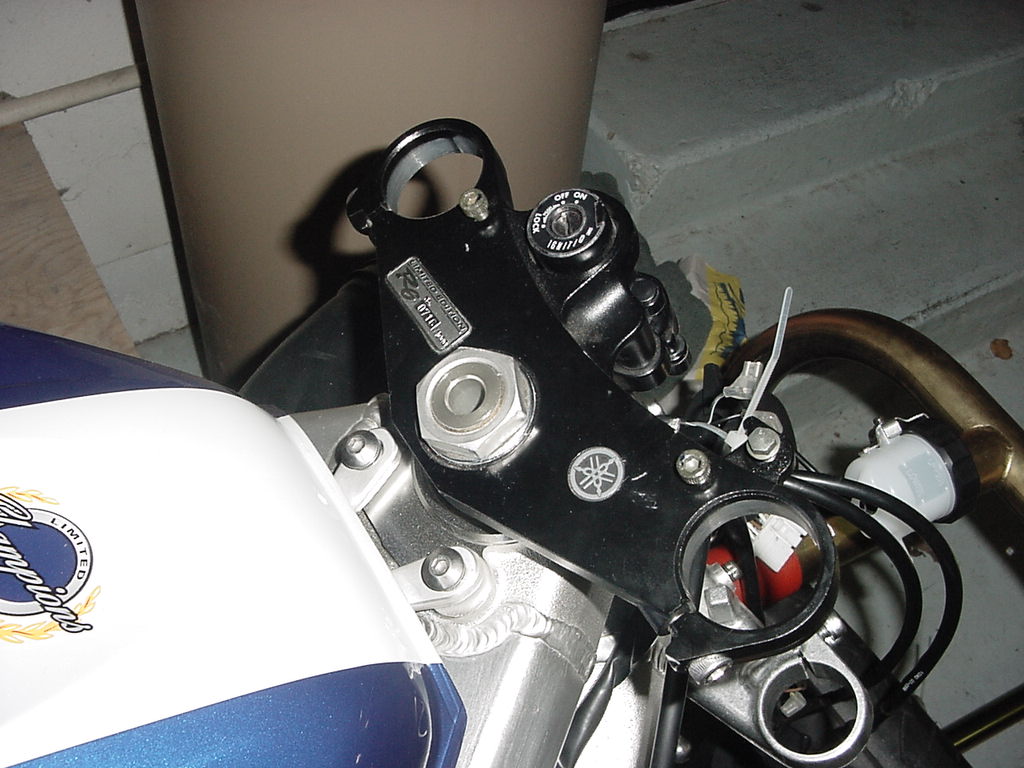

The steering stem nut is 36mm. I ordered one the night i started in on this project, i couldnt find it in any stores in my town.
|
|
|

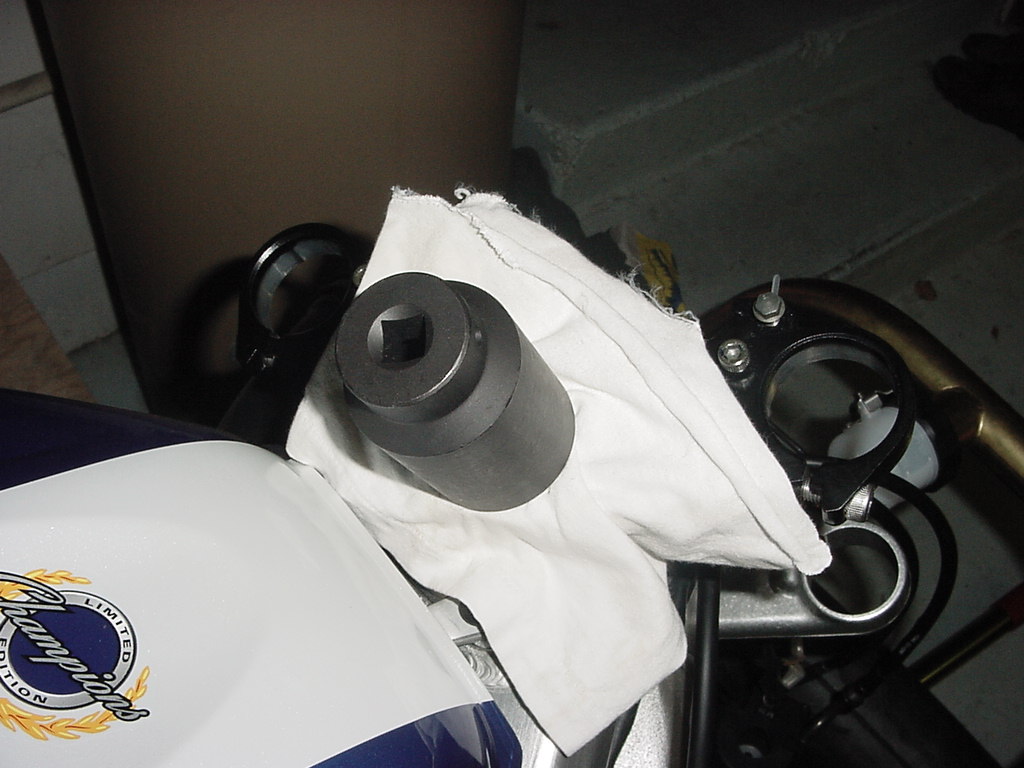

The 36mm 1/2" drive socket. I used the rag so it wouldnt scratch the upper tripple.
|
|
|
|

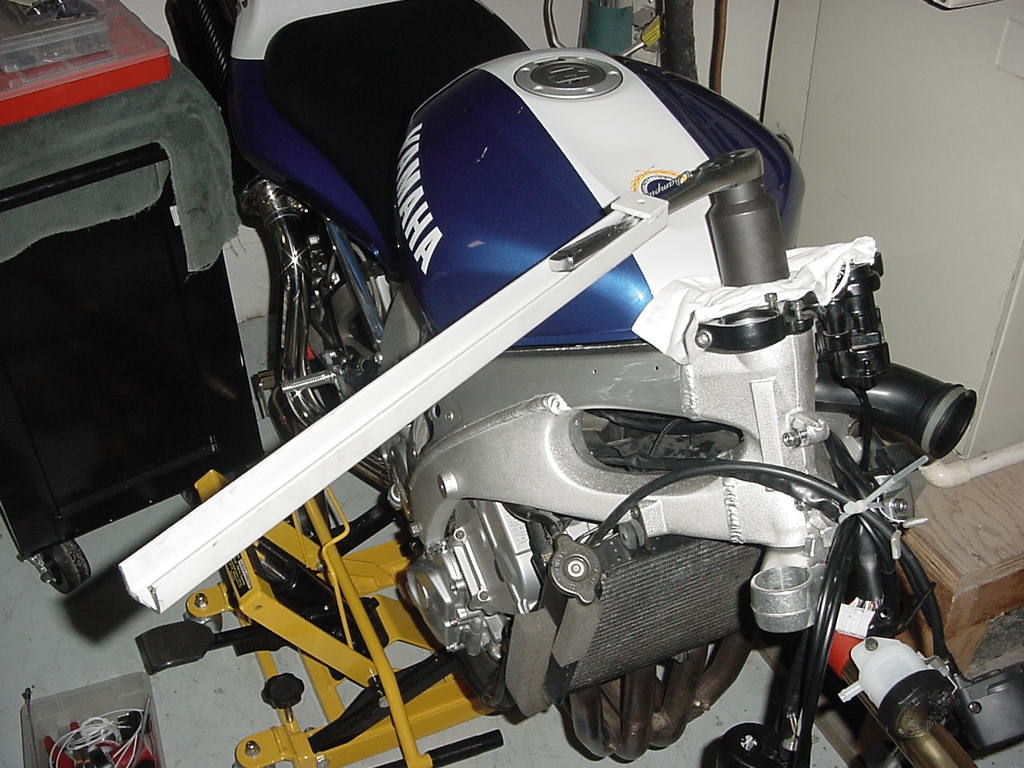

Just the socket wrench by itself didnt give me enough leverage. I used this steel rack piece to help loosen the nut.
|
|
|
Again, i used zip ties to keep the parts in order.
|
|
|
One last nut jam nut holding the lower triple on. once removed, the stem and lower triple were free.
|
|
|

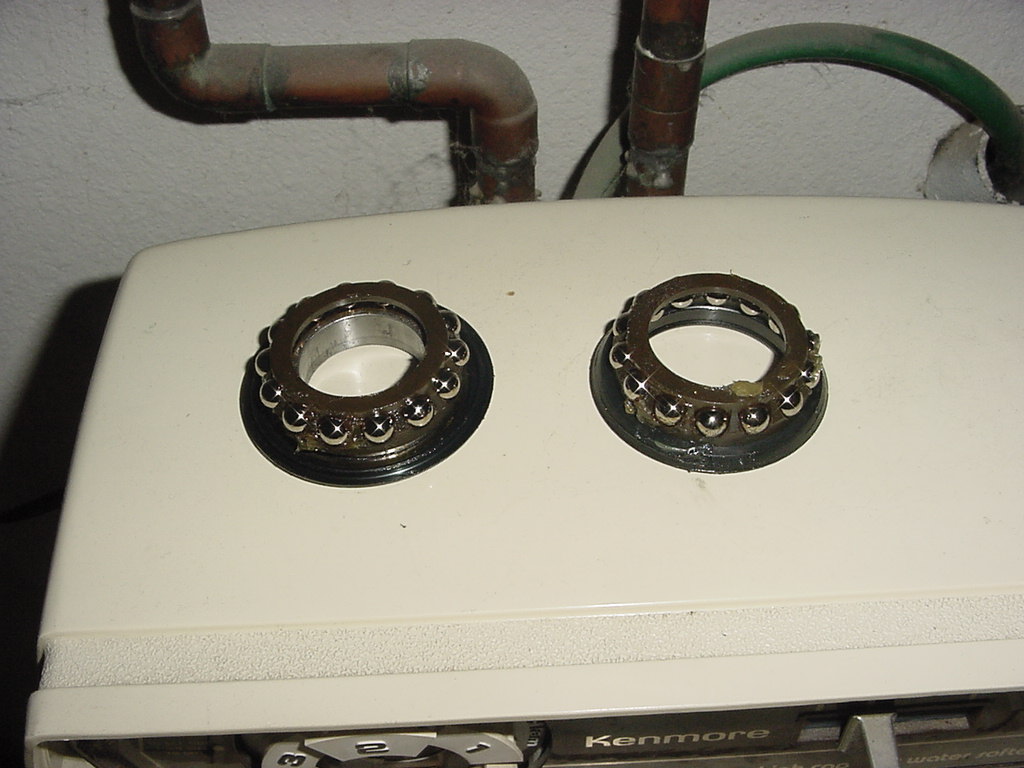

The upper and lower barings.
|
|
|
|

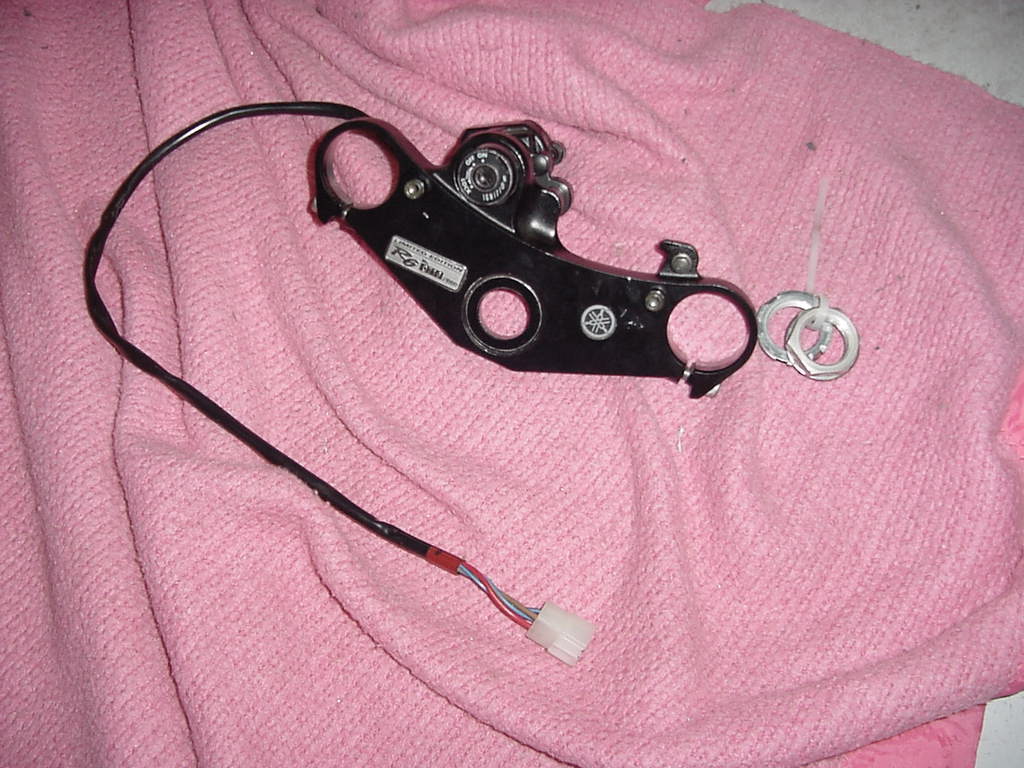

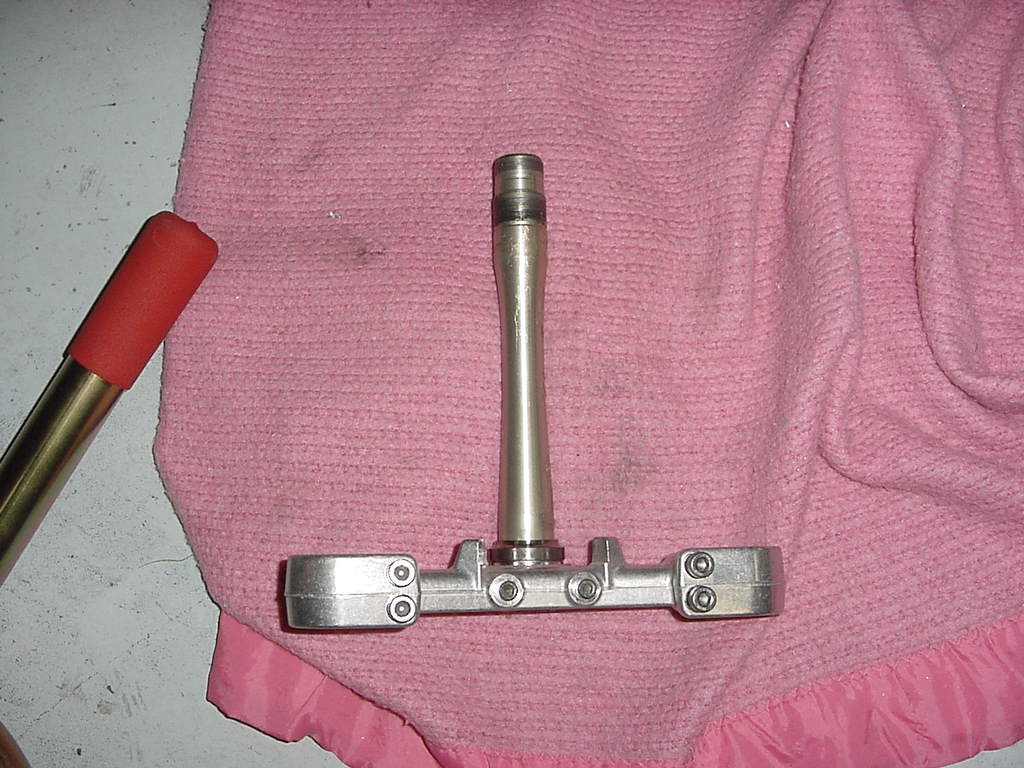

The R6 lower tripple and the stem i will need to use on the R1 trees.
|
|
|

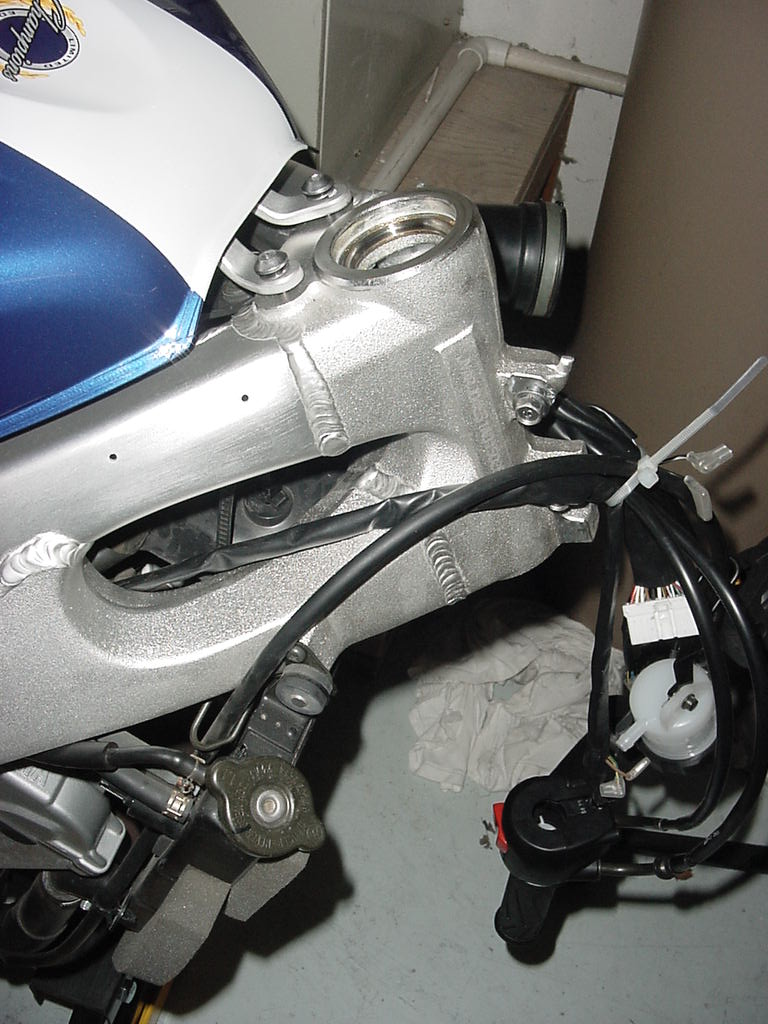

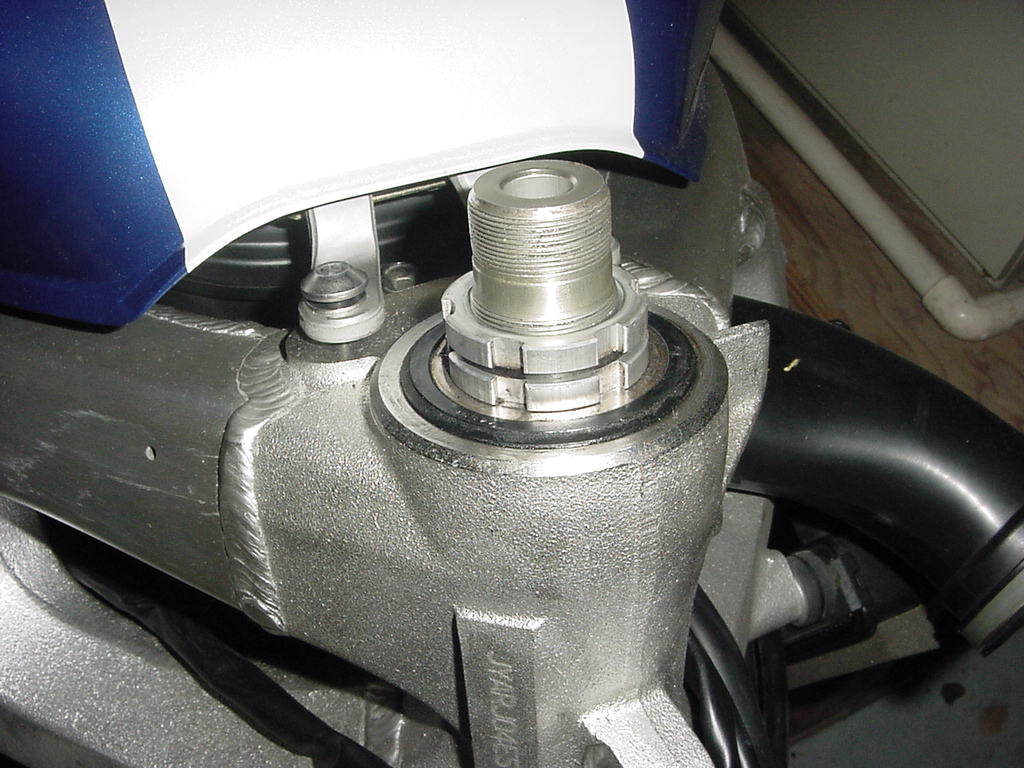

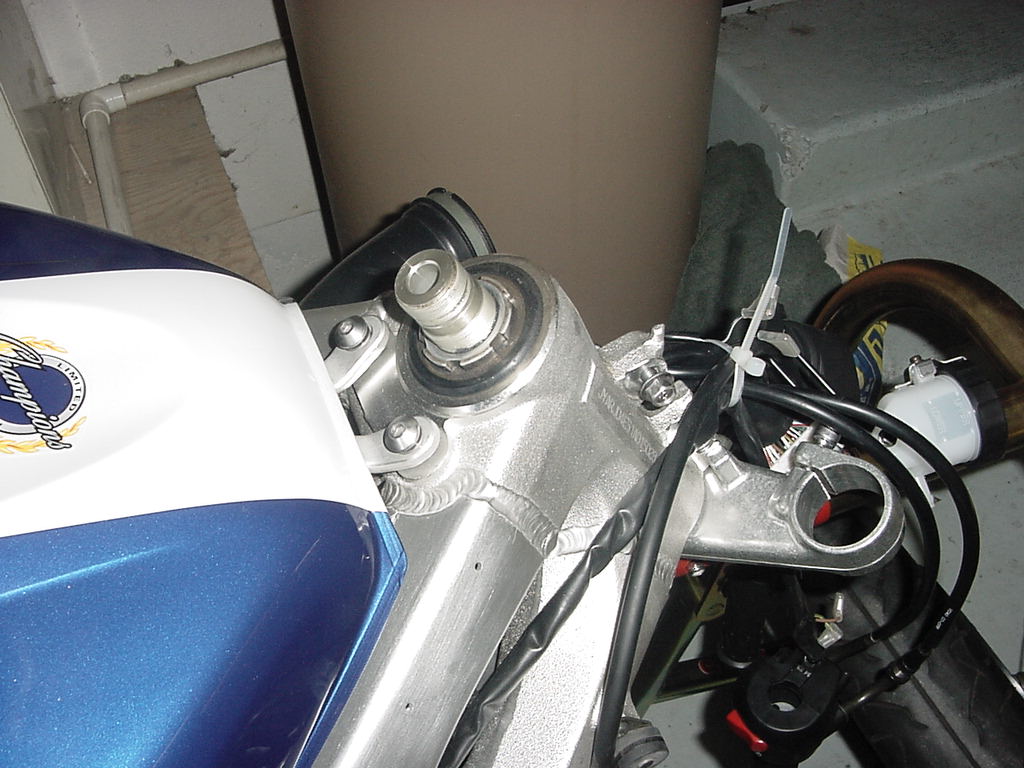

Another look at the frame without the stem in place.
|
|
|

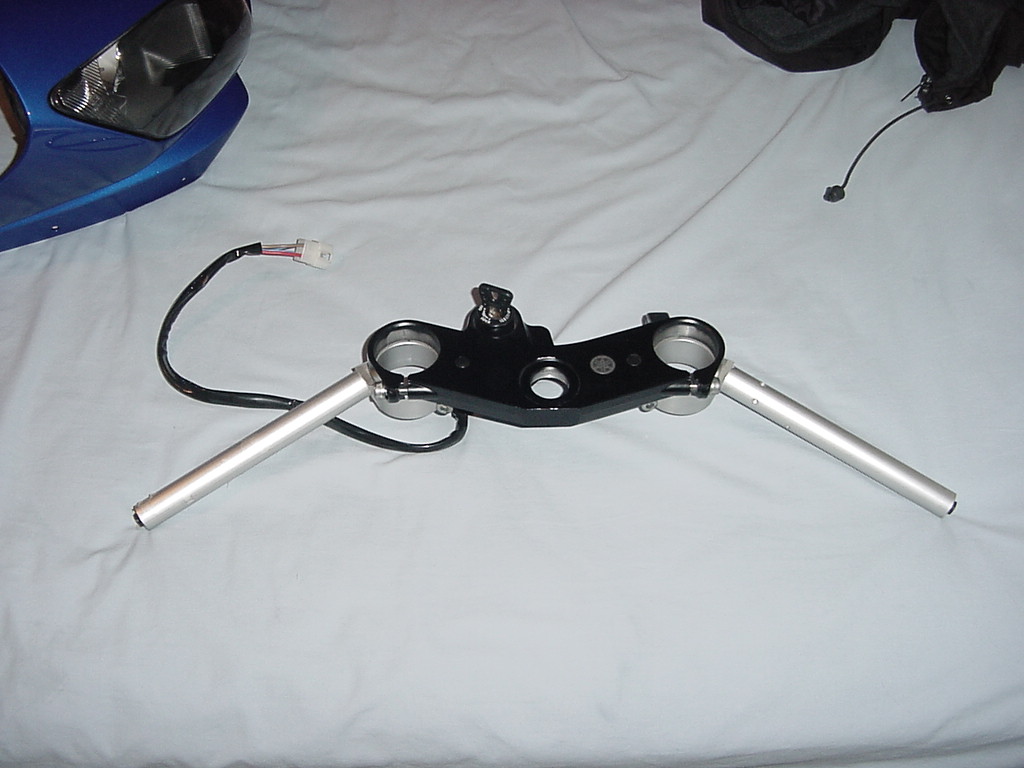

I found this complete set on ebay. It's off an 01 R1.
|
|
|

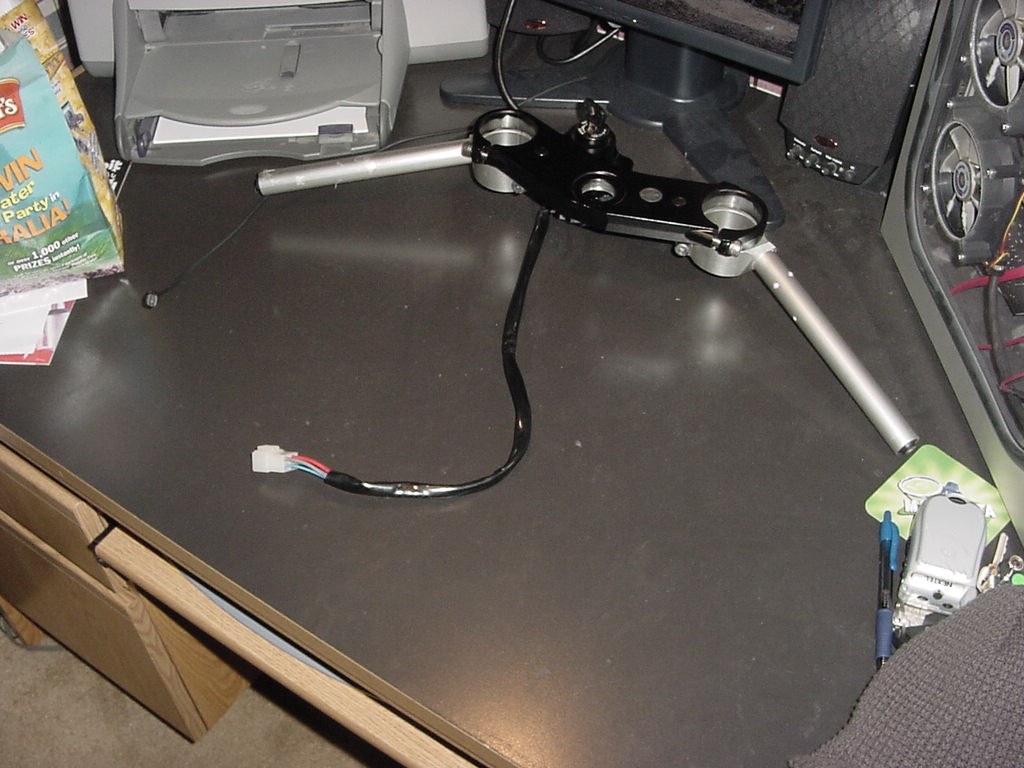

The R1 ignition harness is about 9" shorter than the R6's.
|
|
|
|
I stripped the plastic sheathing back to give me some room to work.
|
|
|

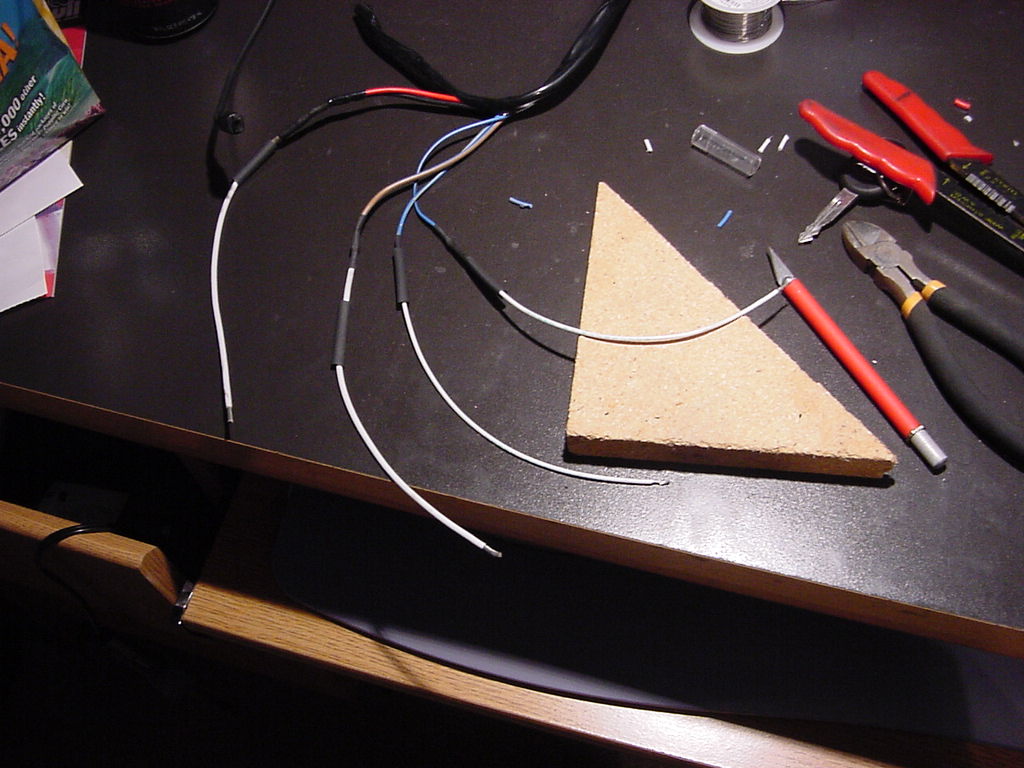

Two of the wires are thick, and two are thin. I matched up some aircraft quality electrical wire for each.
|
|
|

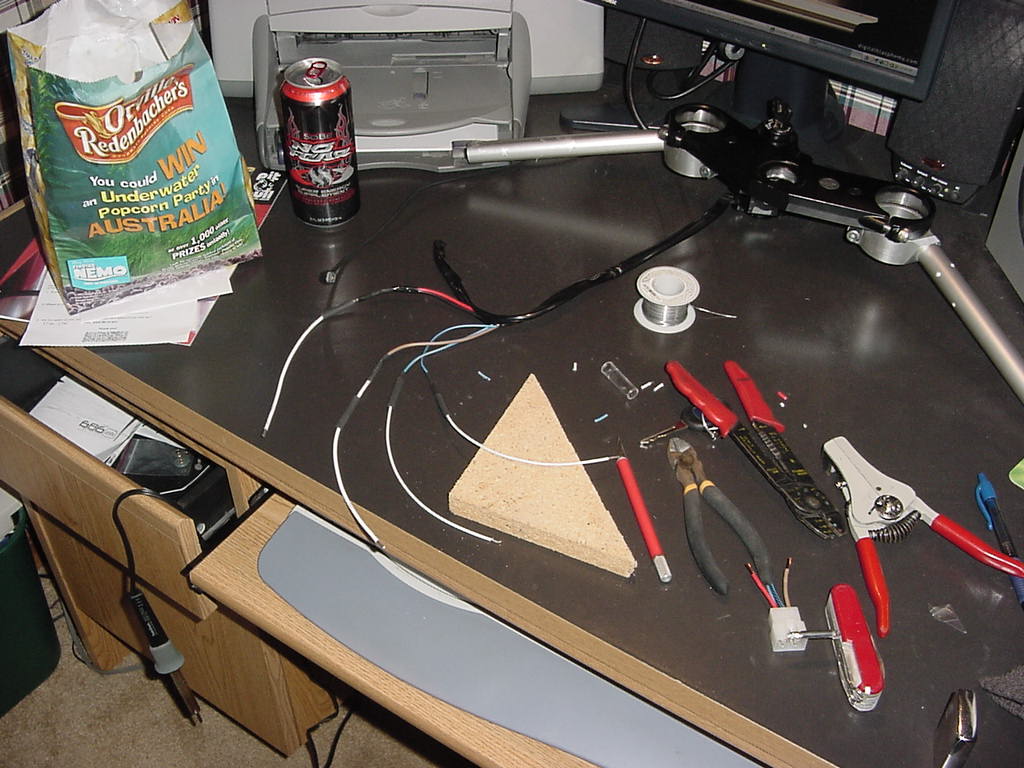

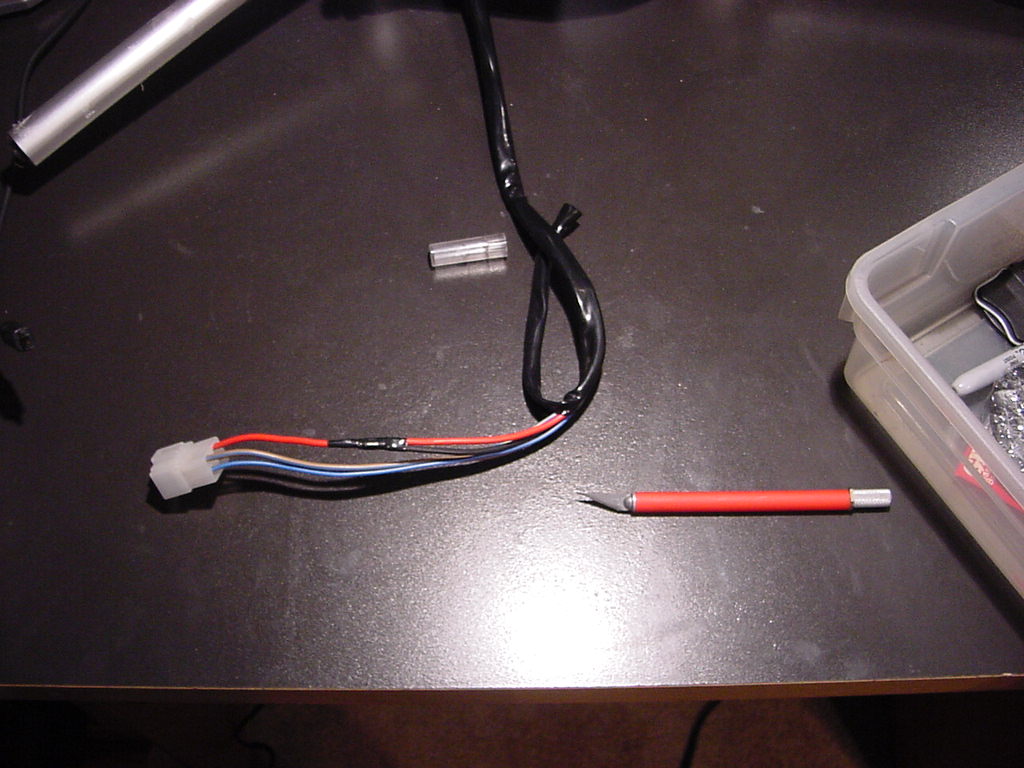

Making some progress.
|
|
|

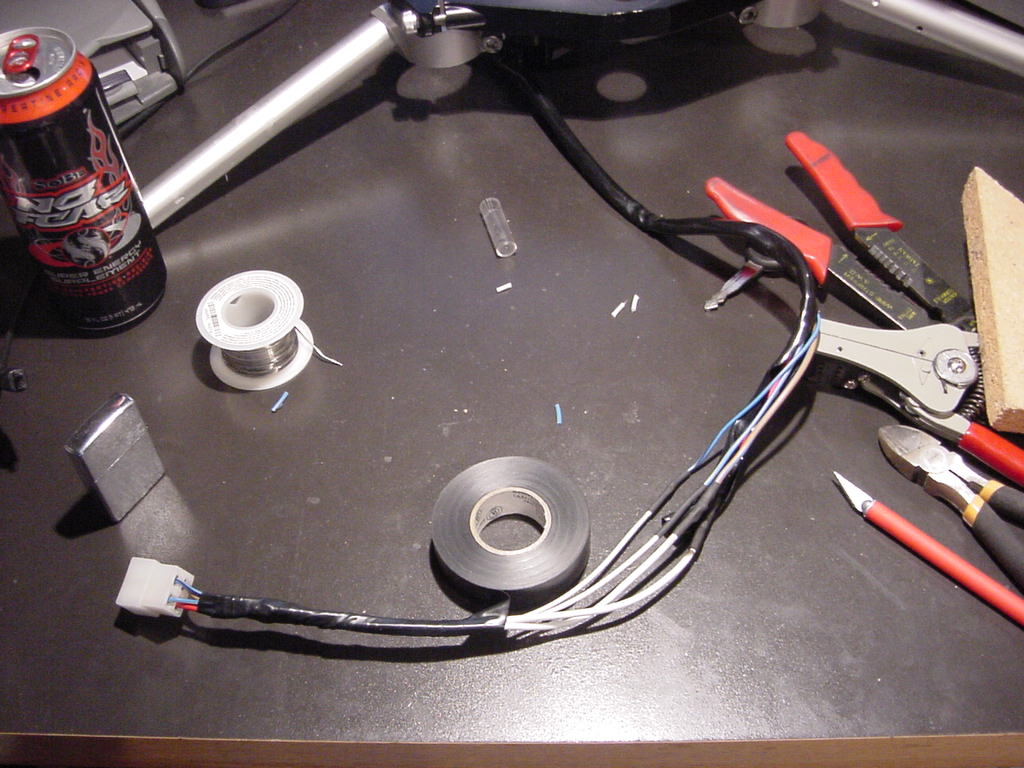

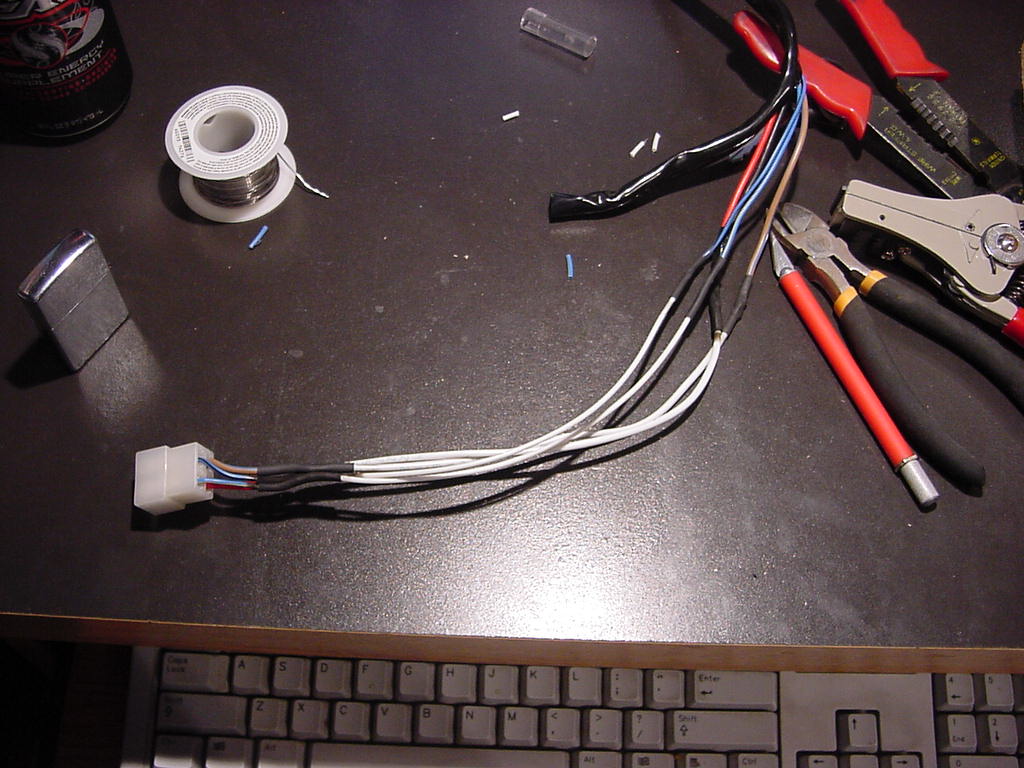

Done with soldering and the heat shrink tubing. Ready to wrap it all up.
|
|
|
|
I wrapped electrical tape around the bunch at an angle as tight as i could.
|
|
|

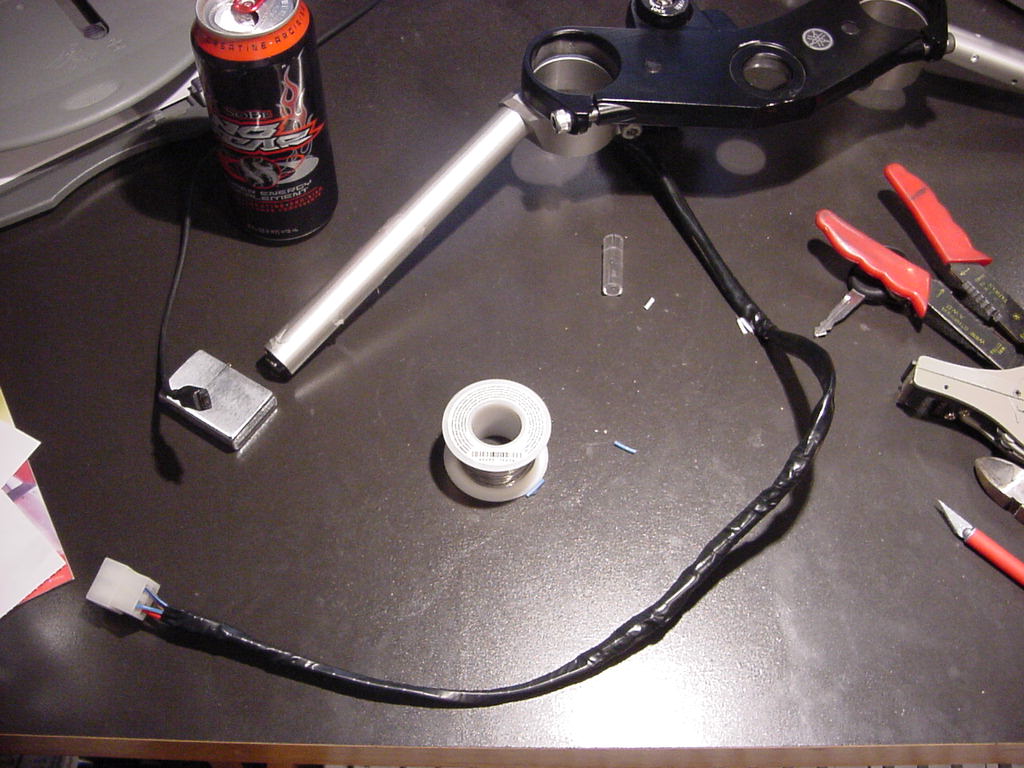

The finished product. I was happy with they way it came out.
|
|
|
Installing the R1 lower triple.
|
|
|

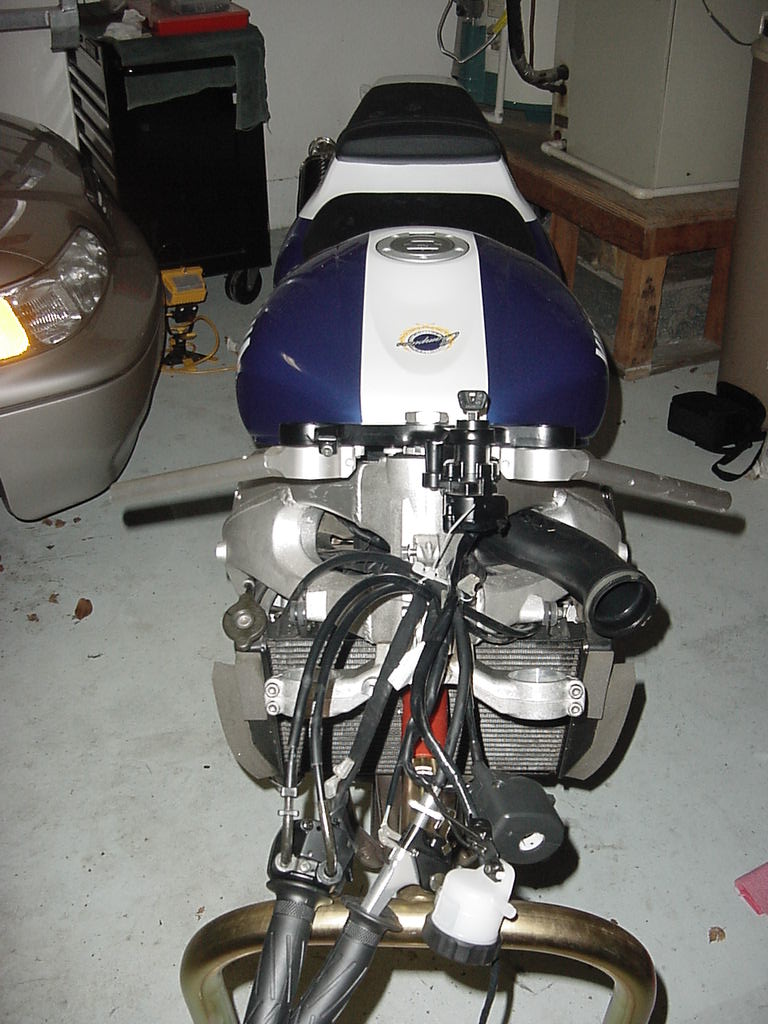

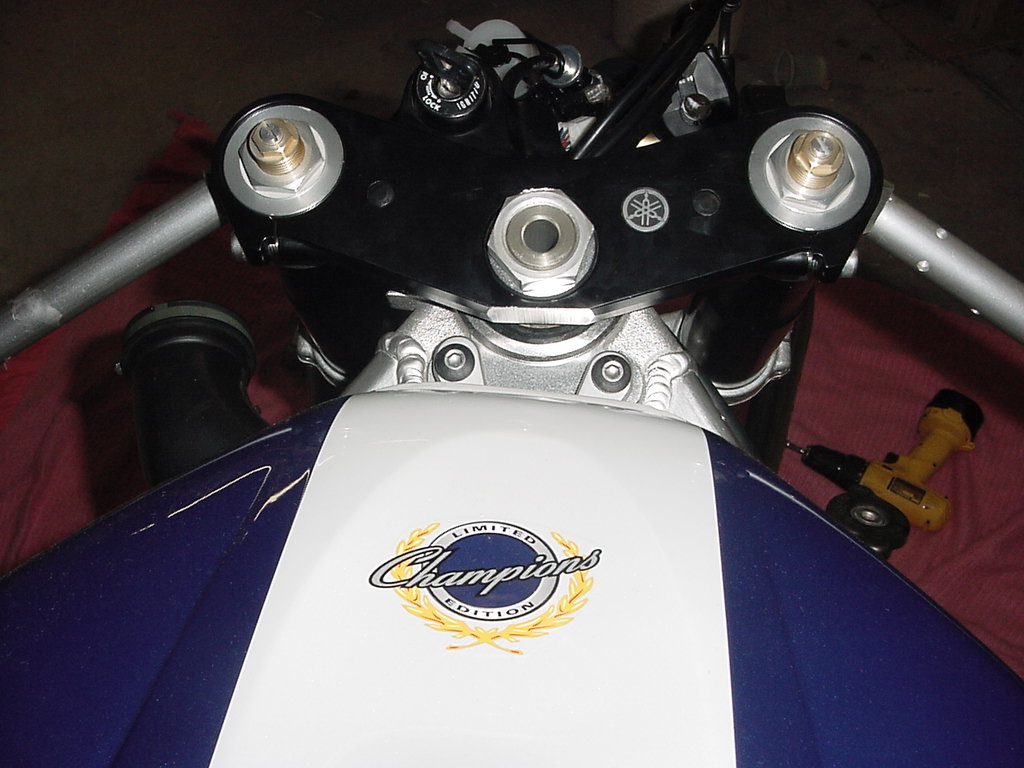

Getting the first look at the new triples and clipons.
|
|
|
|
Another view.
|
|
|

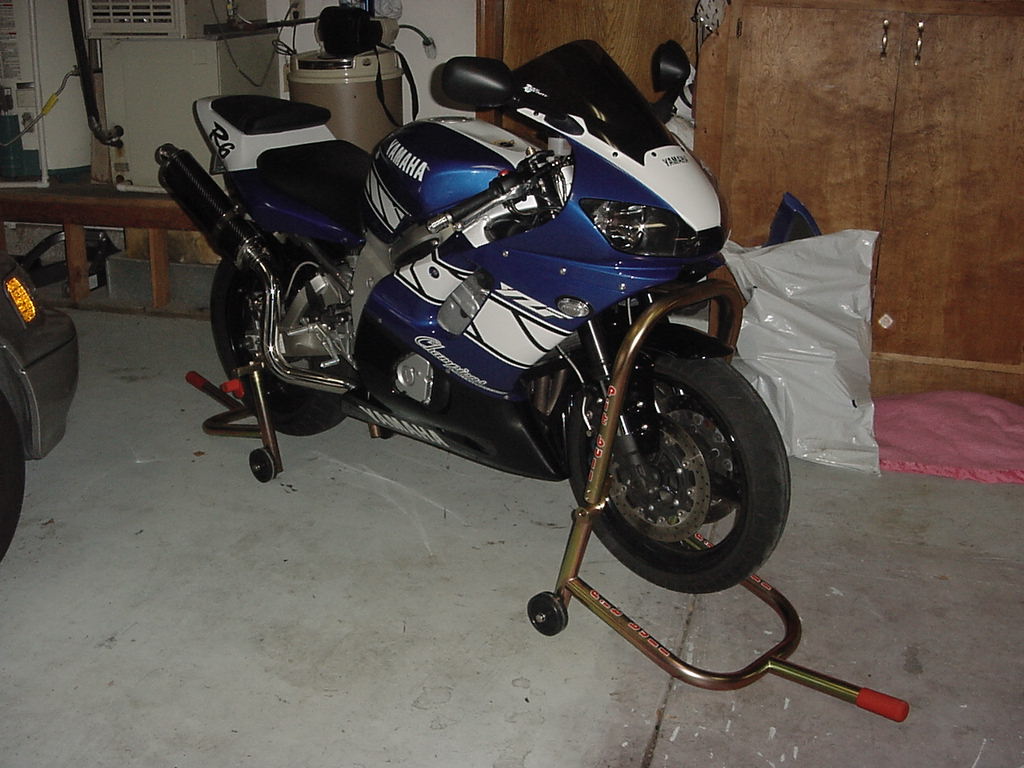

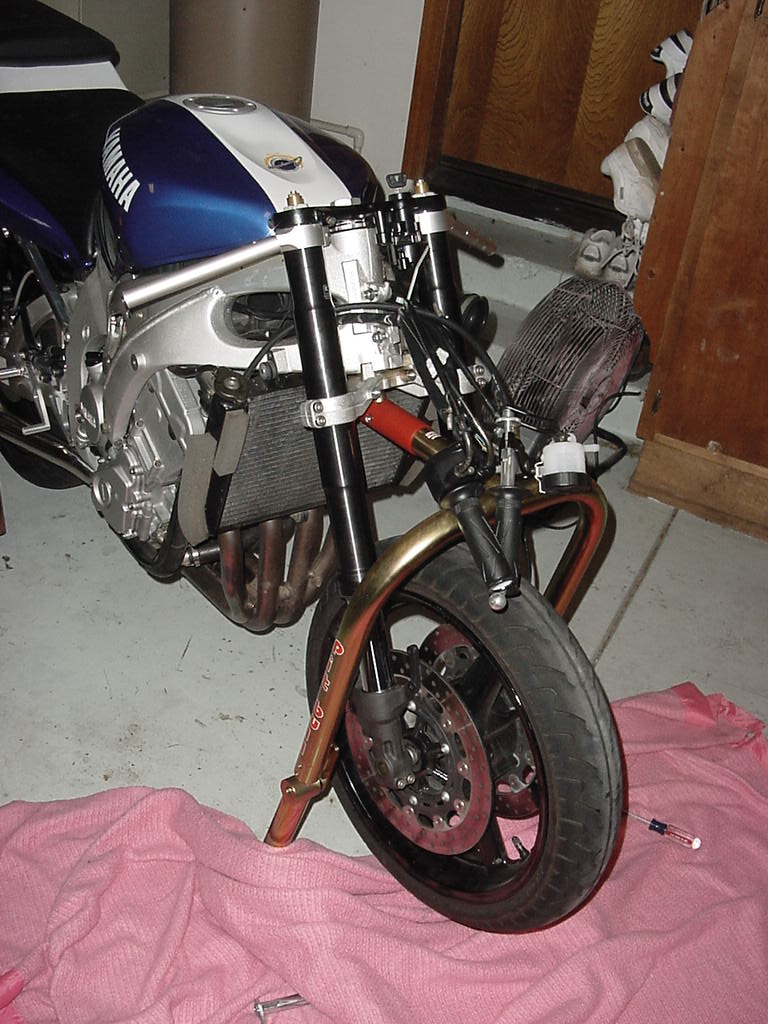

Installed the forks and front wheel.
|
|
|
|
I like the looks of everything.
|
|
|
|
One piece at a time.
|
|
|
|
|
|
|
The new plastics make their appearance
|
|
|
NICE!!!
|
|
|
